| Material |
|
Carcass and door |
19 mm thick Melamine Faced MDF
19 mm thick HPL Faced Plywood |
|
Plinth |
19 mm thick HPL Faced Plywood |
|
Back-wall |
12 mm thick Melamine Faced MDF
12 mm thick HPL Faced Plywood |
|
Hinge |
Die-cast zinc, nickel plated |
|
Handle |
Die-cast aluminum, brushed chrome |
|
Glass screen |
10 mm thick clear tempered glass |
|
Base lining |
Aluminum sheet |
| Colour |
Carcass |
White (RAL 9010) |
|
Door surface |
White (RAL 9010)
Light grey (RAL 7035)
Blue (RAL 5023)
Walnut |
|
Door edges |
White (RAL 9010)
Grey (RAL 7040) |
|
Plinth |
Dark grey (RAL 7043) |
| Dimensions |

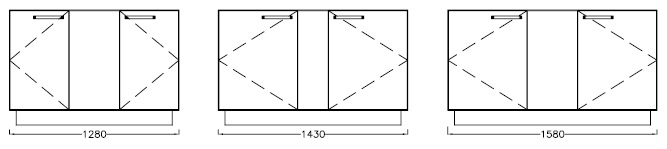

Cabinet width (mm) |
1280 1430 1580 |
|
Cabinet depth (mm)
Worktop depth (mm) |
565 640 715
600 675 750 |
|
Cabinet total height (mm) |
870 |
|
Plinth height (mm) |
110 |
|
Height adjustment (mm) |
-0/+20 |
