| Material |
|
Carcass, top, door, shelf and drawer front |
19 mm thick Melamine Faced MDF
19 mm thick HPL Faced Plywood |
|
Drawer bottom |
12 mm thick Melamine Faced MDF
12 mm thick HPL Faced Plywood |
|
Back-wall |
6 mm thick Melamine Faced MDF |
|
Drawer slides and sides |
Powder coated steel |
|
Hinge |
Die-cast zinc, nickel plated |
|
Handle |
Die-cast aluminum, brushed chrome |
| Colour |
Carcass |
White (RAL 9010) |
|
Door and drawer front surface |
White (RAL 9010)
Light grey (RAL 7035)
Blue (RAL 5023)
Walnut |
|
Door and drawer front edges |
White (RAL 9010)
Grey (RAL 7040) |
|
Plinth |
Dark grey (RAL 7043) |

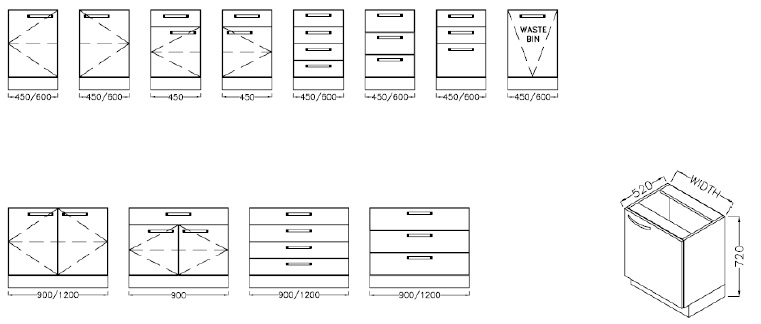

| Dimensions |
Width* (mm) |
450 600 900 1200 |
|
Depth (mm) |
520 |
|
Total height (mm) |
720 870 |
|
Plinth height (mm) |
110 |
|
Height adjustment (mm) |
-0/+20 |
