Type BMS

Bench mounted type with service bridge
With Service Tiles, Service Panels, or Tool Rack
For all bench heights
Single sided (wall assembly) or double sided (center assembly)
Suitable with 225 mm and 300 mm deep shelves
Overhead cabinet can be mounted on spine (wall assembly only)
Wide range of tile and rack options

Options:

Service box
Laboratory scaffolding

Type BMS.jpg

Material

Material	Upright	Epoxy powder coated aluminum extrusion
	Access panel, fixed panel, skirting, and internal beams	Epoxy powder coated steel
	Top cap	Plastic
	Adjustable feet	Metal core with plastic glide
Colour		RAL 7040
Dimensions	Service spine width (mm)	900 1200 1500 1800
	Service spine depth (mm)	150
	Service spine height (mm)	975

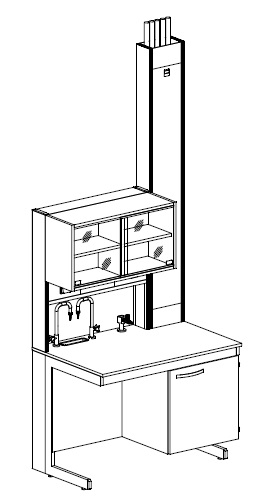

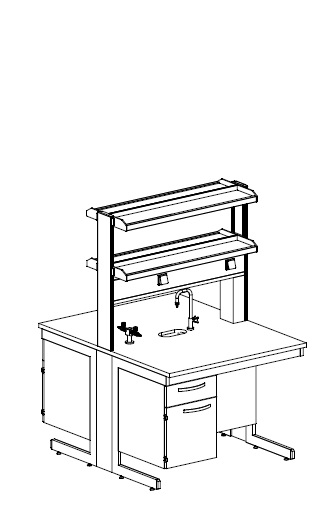

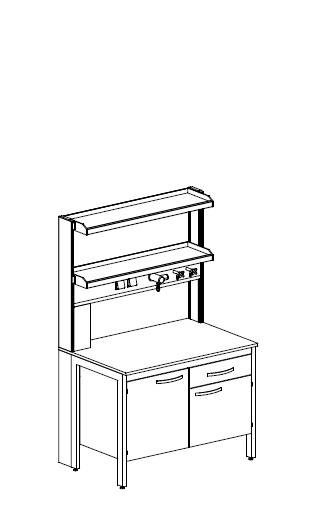

Wall assembly with tiles, overhead cabinet, and service column	Wall assembly with service panel, shelf units, and service box	Center assembly with service panel, shelf units, and service box
