Type SLS

With Service Tiles, Service Panels, and Tool Rack

1175 mm high

For bench heights from 720 mm to 950 mm

Single sided (wall assembly) or double sided (center assembly)

Wide range of tile and rack options

Options:

Access panel with push-to-close latch

Strut channels and pipe clamps

Type SLS.jpg

Material

Material	Upright	Epoxy powder coated aluminum extrusion
	Access panel, fixed panel, skirting, and internal beams	Epoxy powder coated steel
	Top cap	Plastic
	Adjustable feet	Metal core with plastic glide
Colour		RAL 7040

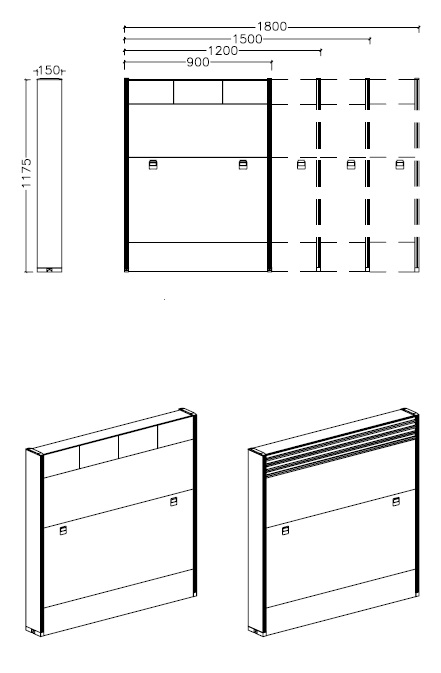

Dimensions	Service spine width (mm)	900 1200 1500 1800
	Service spine depth (mm)	150
	Service spine height (mm)	1175
	Height adjustment (mm)	-0/+25

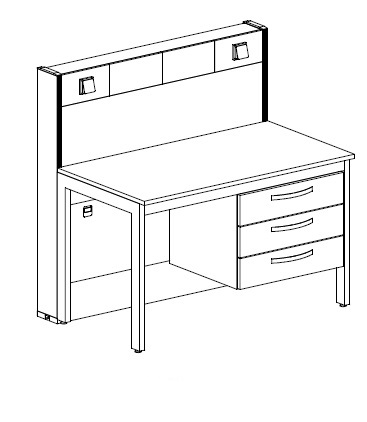

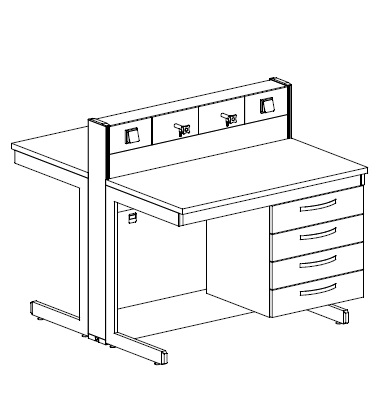

Wall assembly with tiles	Wall assembly with tool rack	Center assembly with tiles

MOSAIC
laboratory furniture systems

The laboratory requirements are indeed a truly dynamic solution that can promptly...

Please contact us for the full detailed Mosaic Catalogue..
